Quick Details

  • Certification: CE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: oem
  • Model Number: best discreet dash cam
  • Warranty: 1 Years
  • Item Type: Car DVR
  • Item Weight: 0.2 kg
  • screen: 1.5"
  • g-sensor: support
  • product name: private DASH CAM
  • lens: 170degree
  • camera: 5M
  • cpu: Novatek 96650
  • Video Resolution: 1920x1080, 30 frame/sec
  • codec: h.264

Packaging & Delivery

Packaging Details: dash cam box
Delivery Detail: 3-10days


New private model Mini Car DVR Camera Black Box Dashcam Full HD 1080P 1.5" TFT 170 Degree Support GPS Logger Dash Cam



Product Description

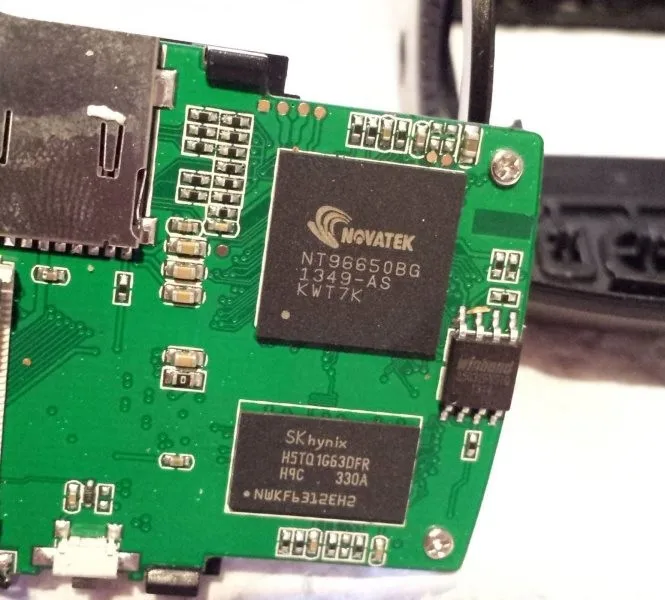

  1. Chipset: Genuine Novatek NT96650
  2. Lens: AR0330 170 degree 6-layers glass lens
  3. Video Resolution:1920x1080P @ 30fps / 1280x720 @ 60fps
  4. File Format: Image: JPG, Video: MOV.
  5. Power-off File Recovery Function: Support.
  6. Motion Detection: Support.
  7. Date Time Mark: Support.
  8. Memory Card: Support up to 32GB Micro SD/TF Card (not included).
  9. Language System: English/ Simplified Chinese/ Traditional Chinese/ Russian/ Japanese /Korean.
  10. USB: Support.
  11. Audio Recording: Support.
  12. Storage Temperature -5 F to 160 F.
  13. Operating Temperature: 10 F to 140 F
  14. GPS:Support(you can choose Add GPS Logger)



Main control chip


Imaging sensor

AR0330 effective 3 megapixels, and 6G lens

Angle of View


Screen Size

HD 1.5 inch Screen

Cycled Recording

Support the seamless cycled recording function

Video Resolution

HD1080P and HD720P

Video Frames

30FPS@HD1080P and 60FPS@HD720P

Video Compression Format

H.264 compression mode, and MOV format

Size of Recording File



Provide the anti-shake function for electronic video

Mobile Detection




PC Camera


Collision Sensing

Sensitivity-adjustable triaxial three-dimensional collision detection

Fast Forward and Fast Backward

Adjust the volume in the playback mode


Chinese, Traditional Chinese, English, Spanish, Russian,

Portuguese, German, Italian, Japanese, and French

Storage Mode

TF card with a maximum capacity of 32 GB

Photo Format


Audio Recording

Support selective audio/video recording and synchronous audio/video recording

External Power Supply

Mini USB 5PIN interface, and USB5V

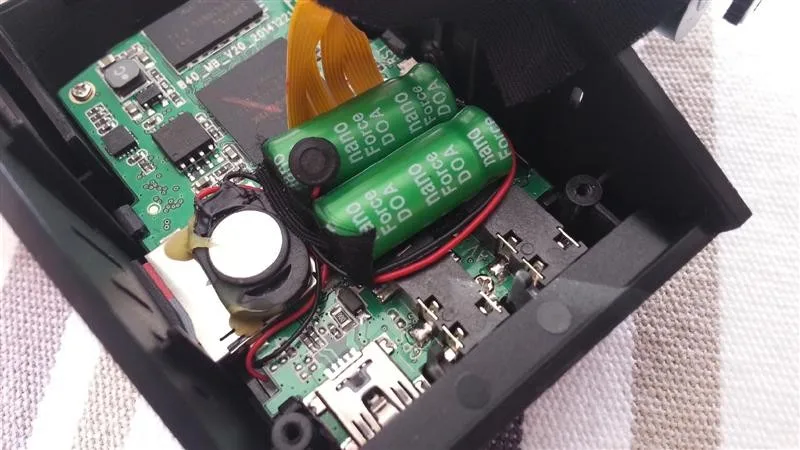

Built-in Power Supply

capacitor instead of a regular battery/or battery for optional

Operating Current

400 MA

Quiescent Current

20 mA

Storage Temperature

-20 to 70°C

Operating Temperature

-10 to 60°C

Operating Humidity

15% to 65% (RH)

Operating System

Support the WIN2000/XP/WIN7


72 x 52 x 43 mm (excluding the bracket)

Shell Material

ABS engineering plastic

Surface Technique

Oil injectio


Packaging & Shipping



Standard gift box
Gift box size: 160*150*80mm
Weight: 530g(Full package)
Carton size: 35*32.5* 42cm
QTY: 20pcs/CTN
N.W: 11.0 Kg
G.W.:12.0 Kg
1*USB cable
1*USB DC 5V 2A Car Charger (cable length: 4meters)
1*Windscreen Suction Cup bracket
1*Manual : English
